MARC® voted "Coolest Thing Made in Wisconsin"
Operate within 10 minutes of receiving!
Requires no infrastructure changes — no need for IT involvement.
Truly self-guided autonomous operation.
Eliminates internet security concerns.
Avoids obstacles in real time with continuous route planning.
Very economical for extremely fast return on investment.
NO training needed for operation.
Shared use by multiple people is simple.
No complex map interfacing.
Battery status is shown on the panel.
Extremely simple programming — simply push the cart anywhere and press a location button for 6 seconds and it instantly becomes a known destination.
Users just press the pre-programmed location button and off it goes.
Multiple modes of operation based on use-case.
Typical Use Case
— As products are manufactured, MARC is loaded and operator presses 2 to send it autonomously to inventory area.
— Products are pulled from stock and loaded onto MARC and puller presses 3 to send to final inspection.
— Once products are ready for shipment, inspector presses 4 to send loaded MARC to shipping area.
Shipment is loaded onto truck and once the cart is empty, loader presses button for the destination where they would like to send MARC for next task.
Combination of 3D Cameras, Lasers and Proximity Sensors Create a Complete View
High resolution 3D depth cameras allow MARC to see at extreme angles and operate safely.
LIDAR scans the environment in real time to build a completely independent map that is used to navigate through an ever-changing facility.
16 proximity sensors create an anti-collision system with 360° view of the area near the cart.
Internal 3-axis digital gyroscope combined with a 3-axis accelerometer for measuring tilt, acceleration and shock.
Sensor combination creates a full view.

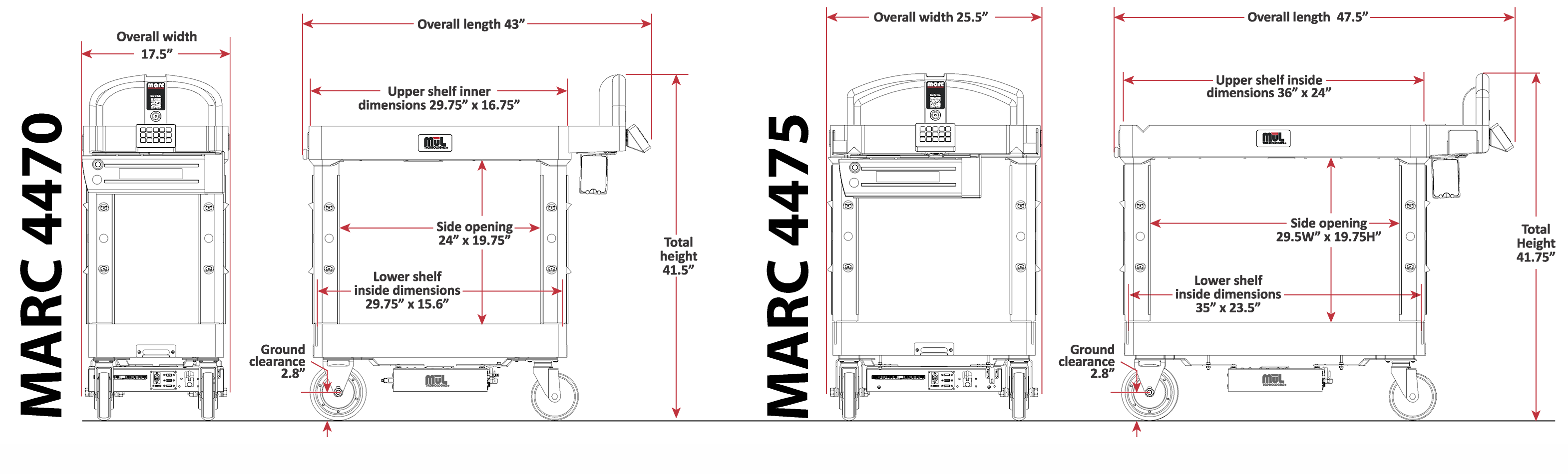

Key Detailed Specifications
Supported temperature range from 0° C to 60° C in non-condensing humidity.
2.8” (7.1 cm) of ground clearance.
All metal components are heavy duty and coated for corrosion protection.
Electrically isolated motors which allow for the cart to be pushed manually.
Push-to-kill red emergency stop button for added safety.
Illuminated ON/OFF button for clear visibility.
Up to 250lb / 110kg maximum payload during autonomous movement.
Reverse voltage, over-voltage and short circuit protections.
High bright colored LEDs for visual indication of events, status and issues.
Brushless DC motors with independent motor controllers.
Software includes environment mapping, planning, navigation, obstacle avoidance and control running real time.
Built in speakers provide audio notifications.
Simple user interface with integrated graphical color displays behind each key for bright, clear identification.
Automatic real time diagnostics and visual cues for proximity sensors, LEDs and battery level.
Keyed, locking connectors to ensure proper cable connections preventing incorrect wiring.
Operates in forward and reverse direction.
High-resolution encoders attached to each wheel.
Battery Pack and Charger Information
Up to 8-hour life under typical usage.
24V, 20 amp-hour lithium-ion battery pack with internal BMS (battery management system).
Duty cycle of 800 charge/discharge cycles.
100-240VAC battery pack charger.
Keyed switch for securing battery pack in place and providing power.
Integrated battery level indicator.
PDF version of the Product Data Sheet
WANT TO MEET MARC?
Fastest ROI in the industry!
Reach out today!
