MARC® 5 Series Overview

MARC Features

Wi-Fi Free

Ensures safe and efficient operation in dynamic environments, preventing collisions and continuously monitoring surroundings to avoid hazards.
Integrates AI for optimizing map creation, route planning, navigation, and optimal traction control, avoiding wasted time and payload shift.
Intelligent acceleration and deceleration for increased efficiency and safety.

AI-Based Learning and Adaptation:

Learns from operational experiences and adapts to environmental changes.
Improves navigation strategies and operational efficiency over time through continuous learning.
Differentiates between static and dynamic objects, enhancing efficiency in busy environments.
Operates autonomously without requiring any operator involvement or external system.

NO training needed for operation.
Shared use by multiple people is simple.
No complex map interfacing.
Battery status is shown on the panel.

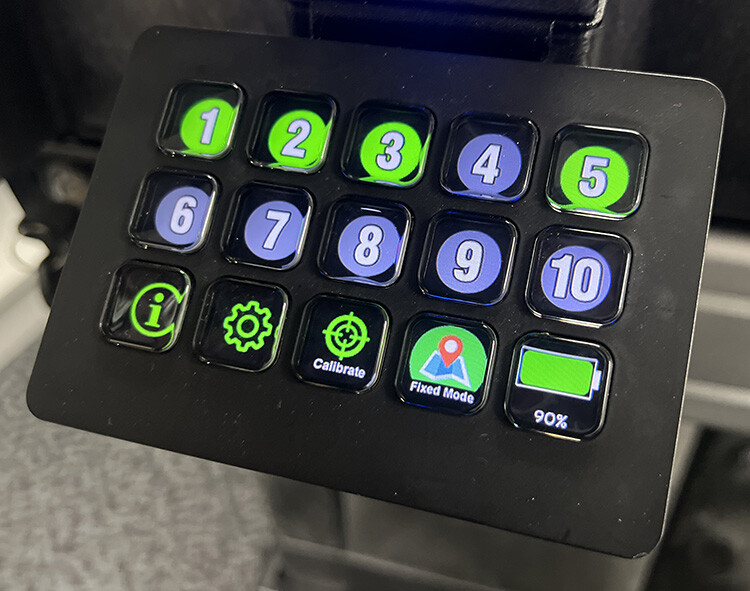

Extremely simple programming — simply push the cart anywhere and press a location button for a few seconds and it instantly becomes a known destination.
Users just press the pre-programmed location button and off it goes.

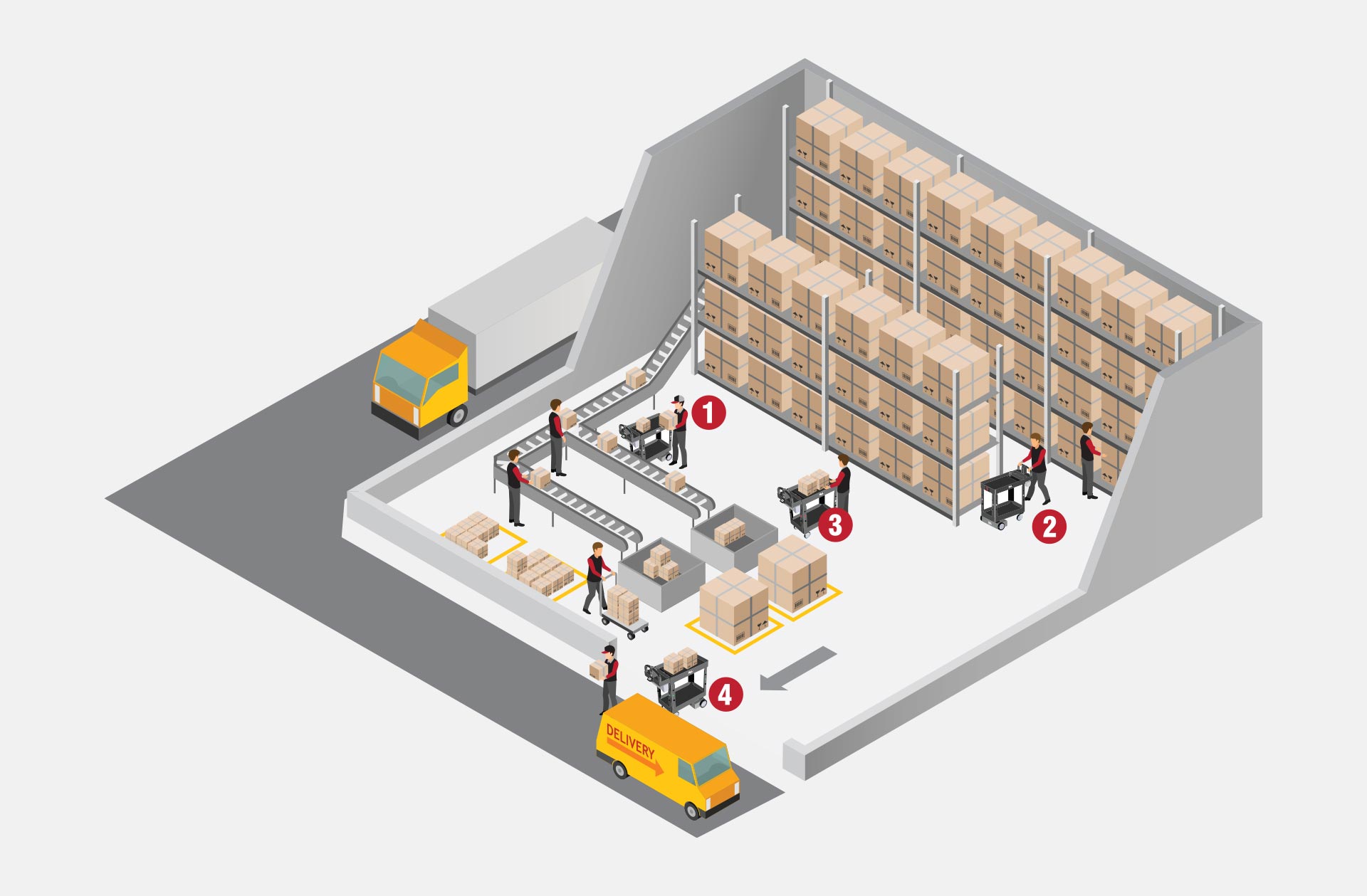

Multiple modes of operation based on use-case.

Manufacturing — As products are manufactured, MARC is loaded and operator presses 2 to send it autonomously to inventory area.
Inventory — Products are pulled from stock and loaded onto MARC and puller presses 3 to send to final inspection.
Final Inspection — Once products are ready for shipment, inspector presses 4 to send loaded MARC to shipping area.
Shipping — Shipment is loaded onto truck and once the cart is empty, loader presses button for the destination where they would like to send MARC for next task.

Shop Now Download Spec Sheet Book a Demo

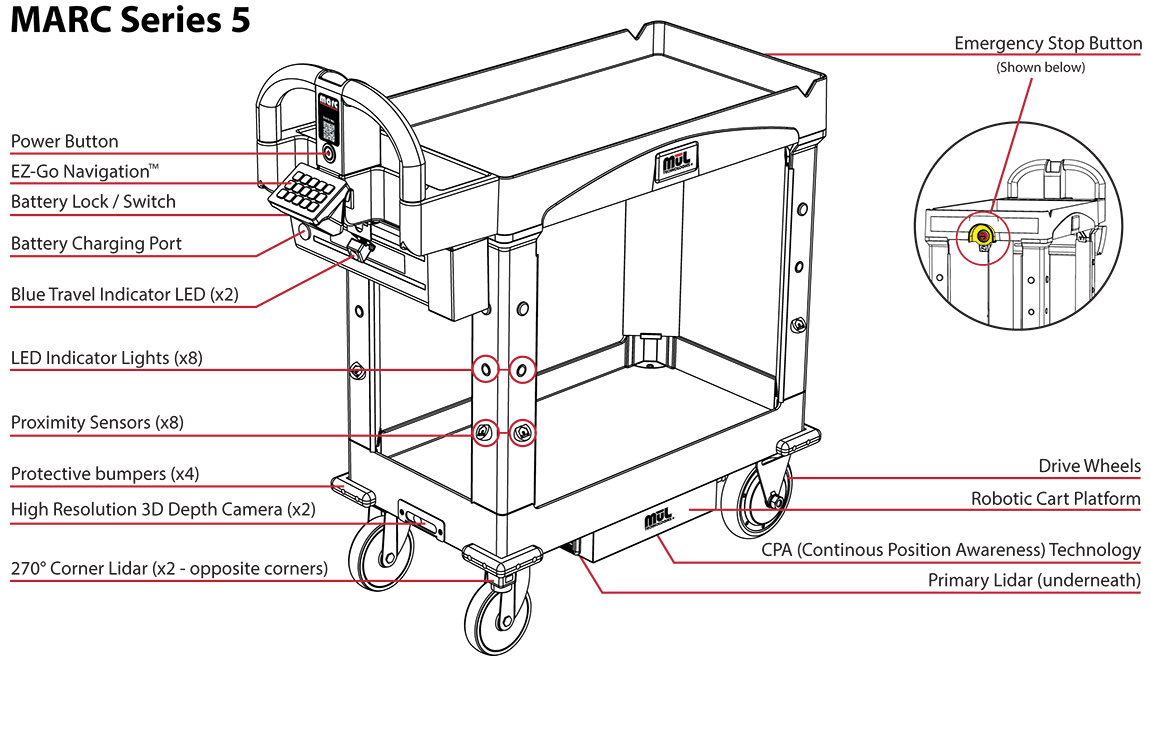

MARC Specifications

Click to view full size

Click to view full size

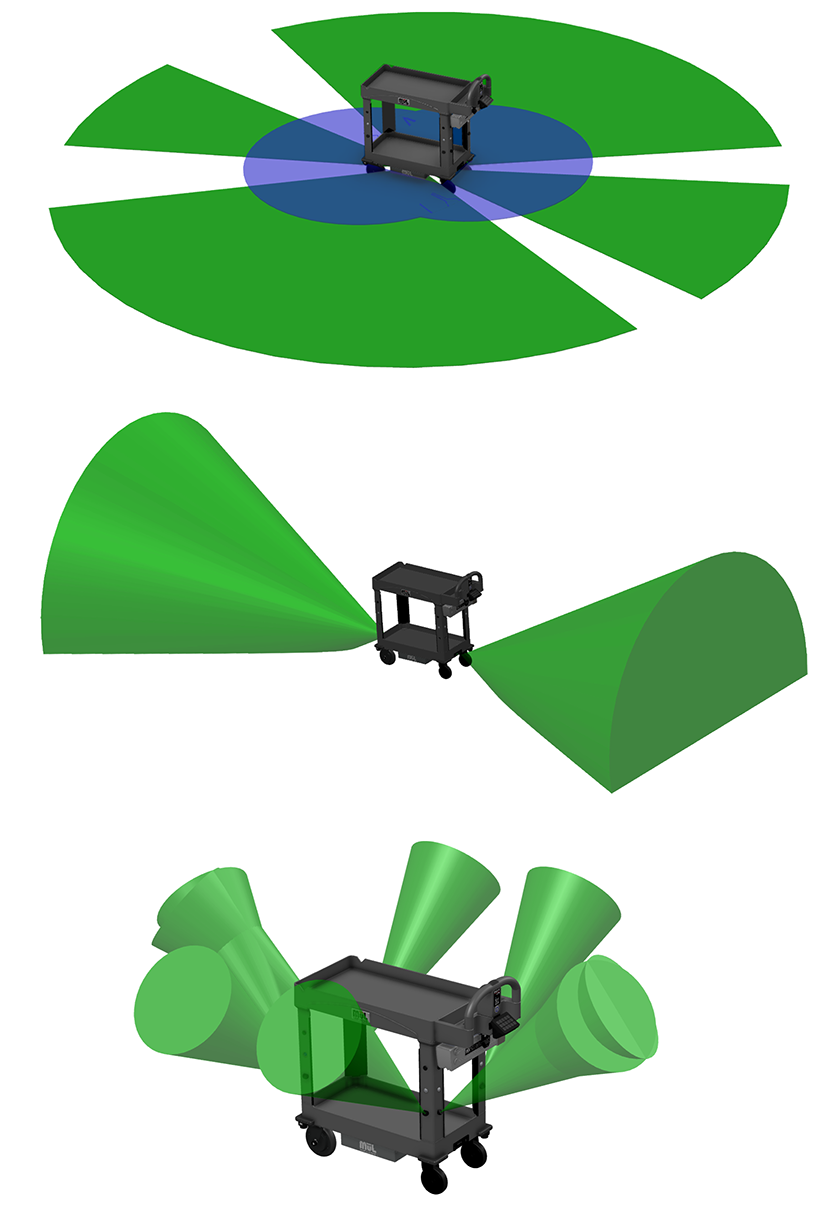

High resolution 3D depth cameras allow MARC to see at extreme angles and operate safely.
3 LIDAR units scans the environment in real time to build a completely independent map that is used to navigate through an ever-changing facility.
8 proximity sensors create an anti-collision system with 360° view of the area near the cart.
Internal 3-axis digital gyroscope combined with a 3-axis accelerometer for measuring tilt, acceleration and shock.

High-bright blue LED to indicate movement and direction.
Supported temperature range from 0° C to 60° C in non-condensing humidity.
3.5" (8.9 cm) of ground clearance.
All metal components are heavy duty and coated for corrosion protection.
Electrically isolated motors which allow for the cart to be pushed manually.
Push-to-kill red emergency stop button for added safety.
Illuminated ON/OFF button for clear visibility.
Up to 220lb / 100kg maximum payload during autonomous movement.
Reverse voltage, over-voltage and short circuit protections.
High bright colored LEDs for visual indication of events, status and issues.
Brushless DC motors with independent motor controllers.
Software includes environment mapping, planning, navigation, obstacle avoidance and control in real time.
Built in speaker provides audio notifications.
Simple user interface with integrated graphical color displays behind each key for bright, clear identification.
Automatic real time diagnostics and visual cues for proximity sensors, LEDs and battery level.
Operates in forward and reverse direction.
Looping mode for automated time-based travel.
High-resolution encoders in each drive wheel.

Up to 12-hour life under typical usage (30Ah).
24V, 30 amp-hour lithium-ion battery pack with internal BMS (battery management system).
Duty cycle of 800 charge/discharge cycles.
100-240VAC battery pack charger.
Keyed switch for securing battery pack in place and providing power.
Integrated battery level indicator.
